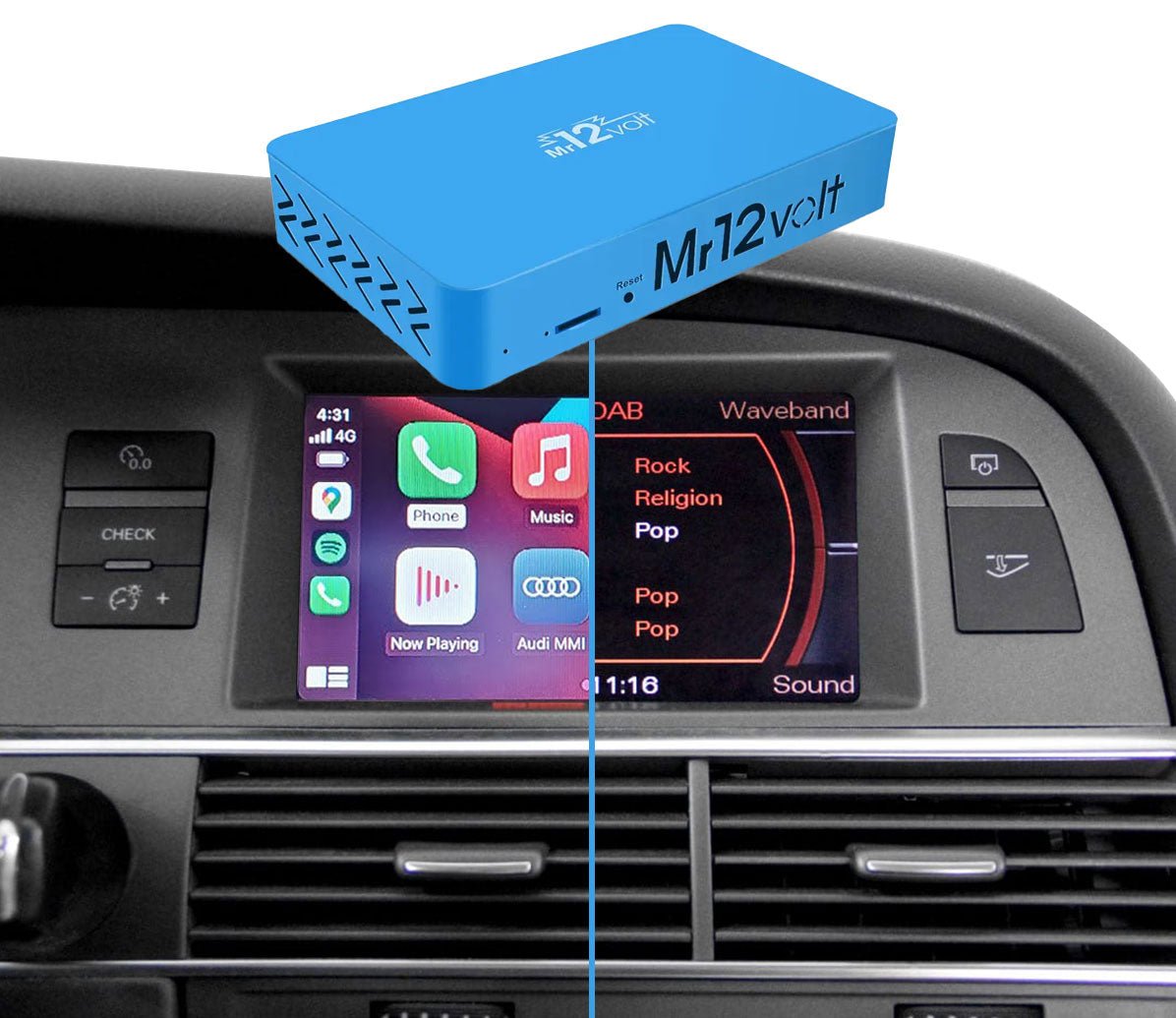

Mr12Volt Audi A6, A8, Q7 MOST Bus MMI 2G High CarPlay & AA Interface

Model No : P2000-2G26MD

The brand new Mr12Volt P2000 MD series has just gotten better now with a built-in highly customizable 15 bar DSP equalizer!

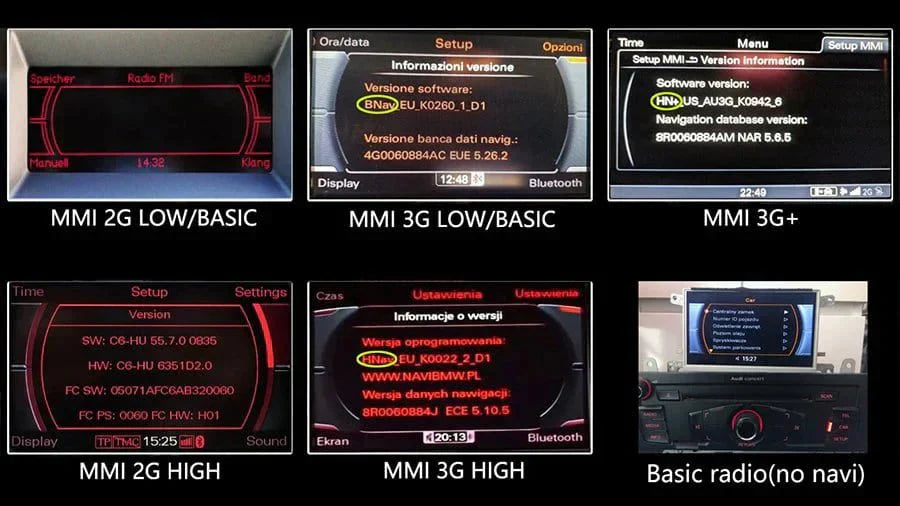

Compatible with Audi MMI 2G High :

(Not Compatible with MMI 2G Basic/Low which has Red and Black Info Display)

• A6 (4F) 2004 - 2009
• A8 (8E) 2002 - 2009
• Q7 (4L) 2005 - 2009

Highlight Features:

• Runs on MOST BUS with High-End sound quality
• Wireless & Wired Apple CarPlay, Google Android Auto
• Wireless MirrorLink
• Bluetooth Hands free & Audio Streaming
• USB Video & Music Playback
• Front / Rear / Left or Right camera Input
• Supports Apple Lossless music streaming
• Highly Customizable 15 bar DSP Equalizer

How it works

• Mr12volt is selected through "Media" button and played through CD changer channel
• No coding or CD changer needed, original CD changer can be retained and installed together with Mr12volt
• Supports aftermarket cameras up to AHD720
• Does Not support the integration of OEM microphones, however both Audi MMI and Mr12volt Bluetooth can be connected at the same time. Audi MMI will handle as HF and Mr12volt as HF/Media (as a result, Audi MMI HF will take over Mr12volt when a call is received)
• SIRI / VA commands must be input with the microphone supplied with P2000

P2000 supported multimedia type (High performance video and audio codec)

• Decoding H.264 (Baseline and Main High Profile, Level 1-4.2)  30fps @1080p
• Decoding VC-1 (Simple Main Profile, low, medium and high levels. Advanced Profile, levels 0-3) 30fps @1080p
• Decoding MPEG1/2/4 (Simple Profile, levels 0-6. Main Profile, low, medium and high levels. ASP, levels 0-5) 30fps @1080p
• Decoding Real-Video 8/9/10 30fps @1080p
• Decoding VP6/7/8 (VP6.0/1/2, VP7 version 0-3, VP8 version 2(WebM)) 30fps @1080p
• Decoding DivX (DivX3/4/5/6) 30fps @1080p
• Decoding H.263 (Profile 0, levels 10-70.) 30fps @720x576
• JPEG codec (Baseline interleaved) 8176x8176
• Support *.mkv, *.mp4, *.avi, *.wmv, *.rmvb, *.rm, *.mpg, *.mpeg, *.ts, *.dat, *.asf, *.flv, *.vob, and so on file format
• Multi Format Audio CODEC (MP3, WMA, AAC, AC3, DTS, OGG, FLAC, APE, AMR, and so on)

Related Topics:

How to mirror to P2000 from phone

Additional Technical Data:

• Operating Temperature: -20 - +80 degree centigrade
• DAC resolution: 18Bit
• MP3 kbit: 8 - 384kbit
• Voltage: 10 - 14.6V DC
• Operation Current: 450mA (700mA when charging mobile phone)
• S/N ratio: 95dB
• Total Harmonic Distortion: 0.1%
• Frequency Response: 20Hz - 20KHz

Videos
